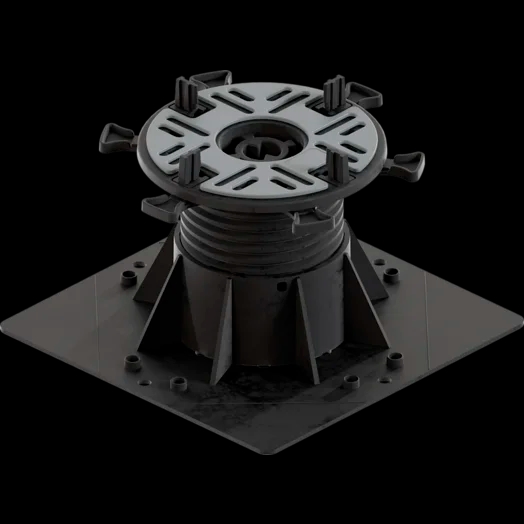

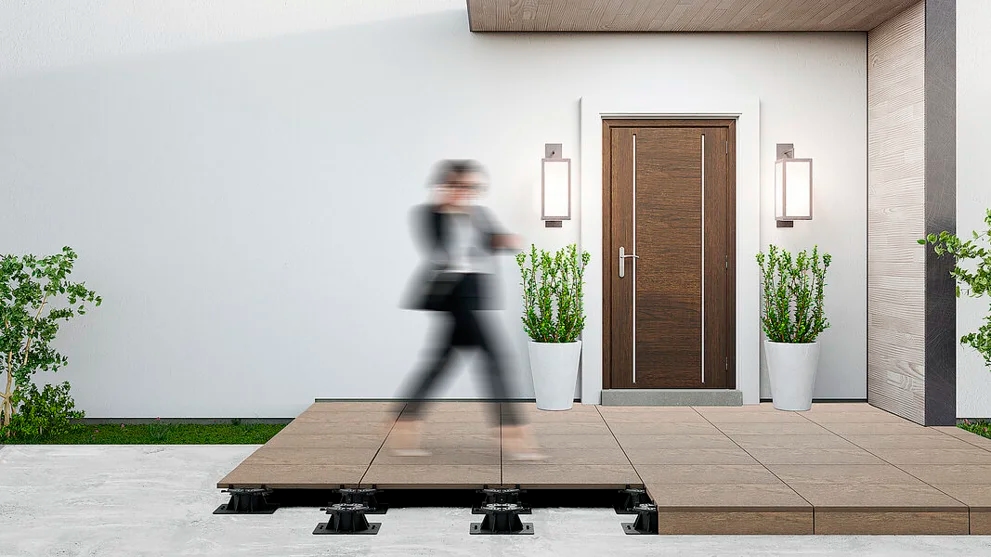

Lunar Supports are ideal for raised flooring on terraces, poolsides and urban spaces. They offer dual adjustment, a self-levelling head and the QuickOn system for efficient installation.
DETAIL.GENERAL_FEATURES
Fixed head
Self-levelling head
Key adjustment
Lateral adjustment
AntiShock
Windproof
Heights between 10 and 50 cm

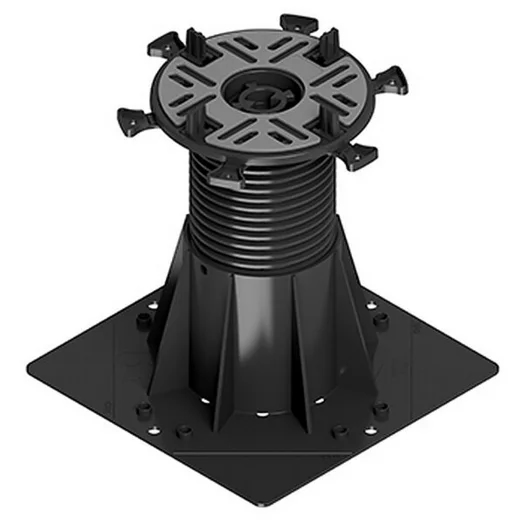

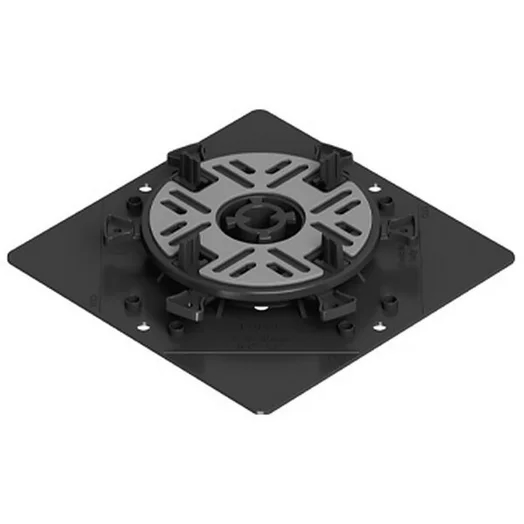

Lunar Supports for raised flooring, ideal for application on residential building terraces, poolsides, garden paths, and in squares and urban spaces, they embody all the features of the Pedestal Line:
• dual adjustment, from the top and side
• fixed head convertible to self-levelling with the aid of a balance ring
• 20 and 80 mm extensions for easy installation and efficient storage
• QuickOn system, for maximum...
Lunar Supports for raised flooring, ideal for application on residential building terraces, poolsides, garden paths, and in squares and urban spaces, they embody all the features of the Pedestal Line:
• dual adjustment, from the top and side
• fixed head convertible to self-levelling with the aid of a balance ring
• 20 and 80 mm extensions for easy installation and efficient storage
• QuickOn system, for maximum compatibility, thanks to a single head, with a variety of finishes: from ceramic tiles to stone slabs, as well as decking boards laid on Impertek joists
The revolutionary square base, the signature feature of the entire Lunar Support family, saves considerable laying time: by occupying the same surface area, it eliminates the problem of trimming the base along the walls.
Lunar Support is also available with a specific decking head for laying wooden floors. The features of this version remain unchanged compared to the tile/rail version, with the exception of the adjustment which, for structural reasons, can only be done laterally. Depending on the type of joist used, a different fixing method is recommended: the 40 mm joists are attached to the head at the two slots without the use of fixing screws, while the 40 and 80 mm joists are screwed to the slots.
The Lunar Support joist/rail is available in 2 and 4 mm thicknesses, while Lunar Support decking can accommodate both 40 mm and 40 to 80 mm joists.
Numerous laying equipment accessories for outdoor flooring are available for the Lunar Support range: from the Pocket Key adjustment key, WallClips and SideClips, as well as slope correctors.
Lunar Supports for raised flooring, ideal for application on residential building terraces, poolsides, garden paths, and in squares and urban spaces, they embody all the features of the Pedestal Line:
• dual adjustment, from the top and side
• fixed head convertible to self-levelling with the aid of a balance ring
• 20 and 80 mm extensions for easy installation and efficient storage
• QuickOn system, for maximum...
Product Variants
Lunar Support Decking 40-80 mm
Height from 25 to 420 mm
Decking system

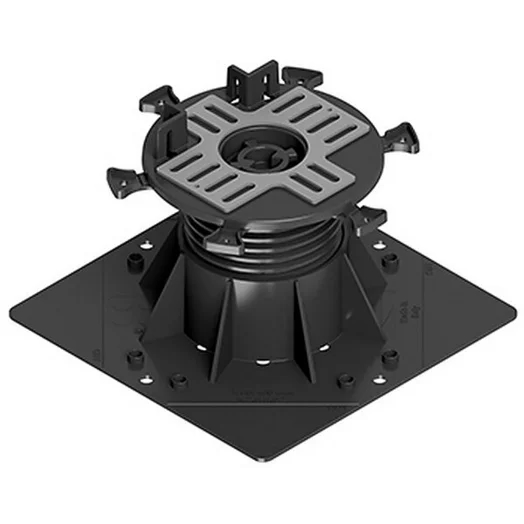

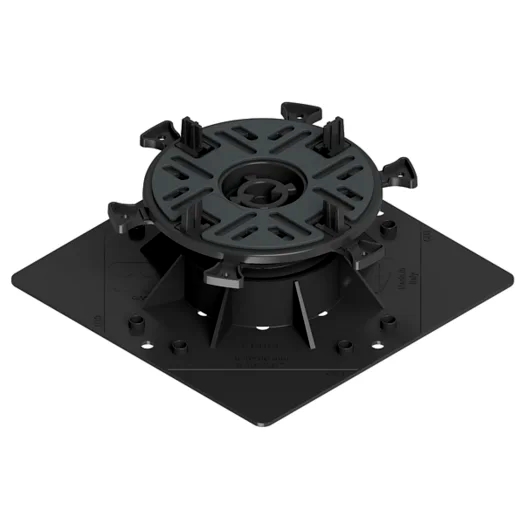

Lunar Support Tile/Rail th. 2 mm
Height from 25 to 420 mm
Tile system
RailSystem

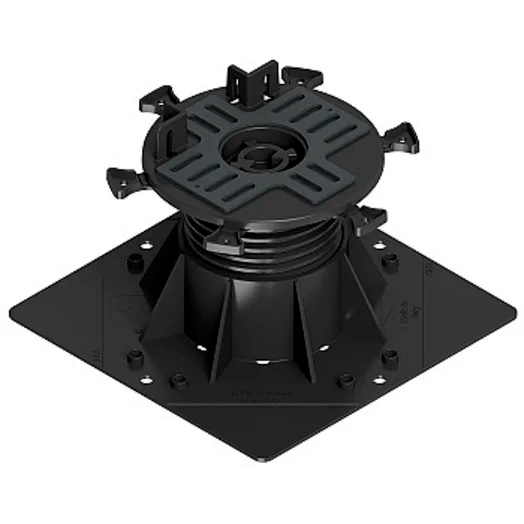

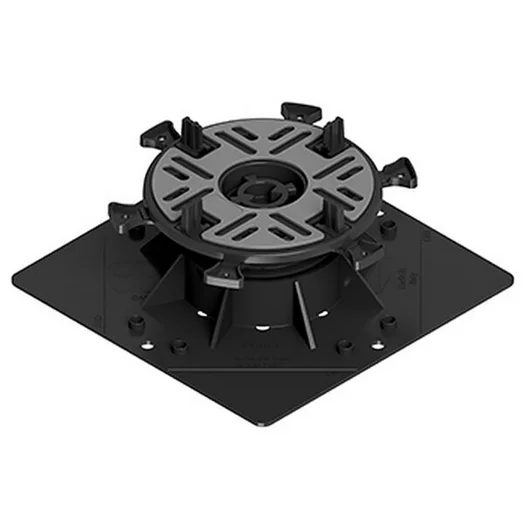

Lunar Support Tile/Rail th. 4 mm
Height from 25 to 420 mm
Tile system
RailSystem
Accessories
Discover accessories that enhance performance when combined with the support

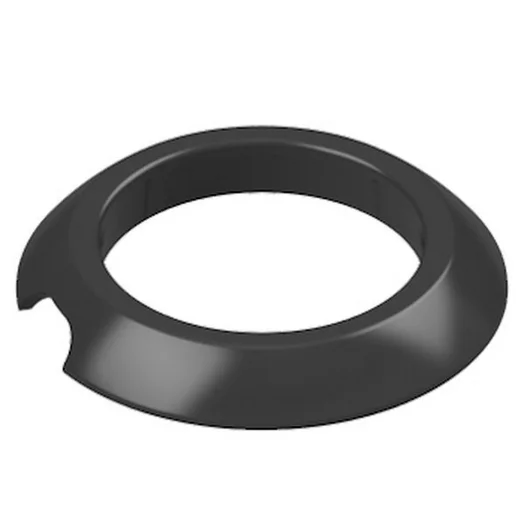

Balance Ring for Lunar Support
The balance ring, attached to the head, transforms the support from fixed to self-levelling, allowing...
Extension h. 20 mm for Lunar Support
The extension h. 20 mm allows the height of Lunar Support to be increased to...
Extension h. 80 mm for Lunar Support
The extension h. 80 mm allows the height of Lunar Support to be increased to...

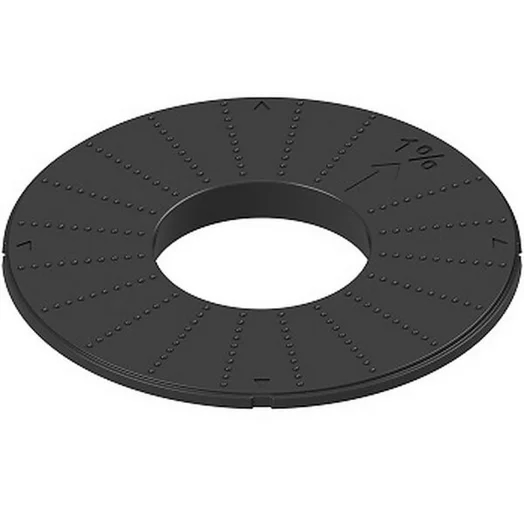

Lunar Slope Corrector 1%
The Lunar slope corrector 1% is designed to correct slopes up to 1% precisely and...

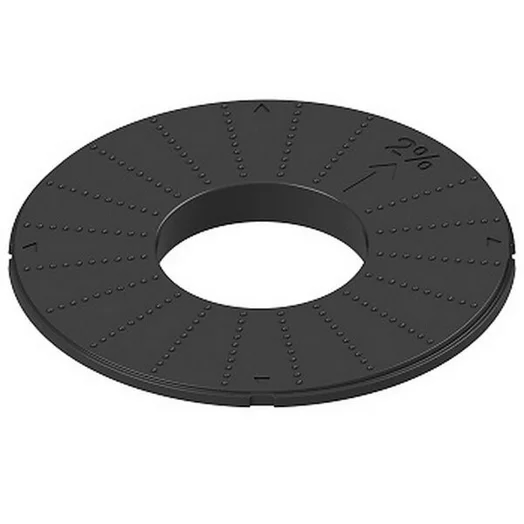

Lunar Slope Corrector 2%
The Lunar slope corrector 2% is designed to correct slopes up to 2% precisely and...

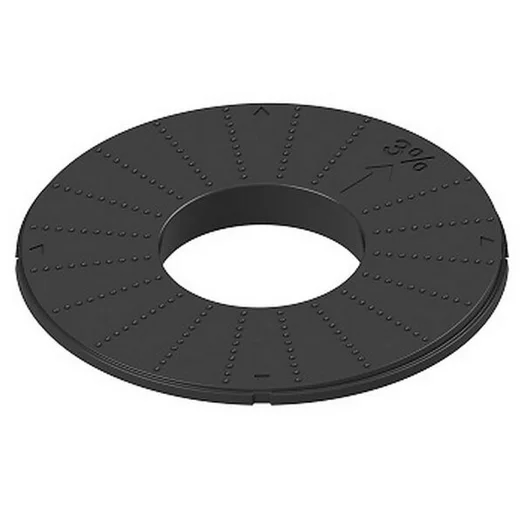

Lunar Slope Corrector 3%
The Lunar slope corrector 3% is designed to correct slopes up to 3% precisely and...

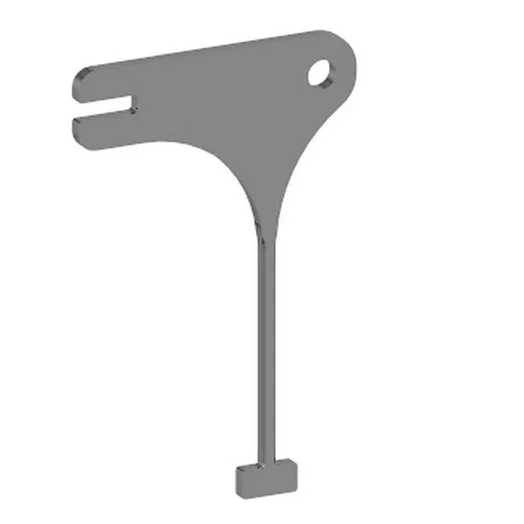

PocketKey
PocketKey is designed for adjusting supports from the top, making it easier to install ceramic...

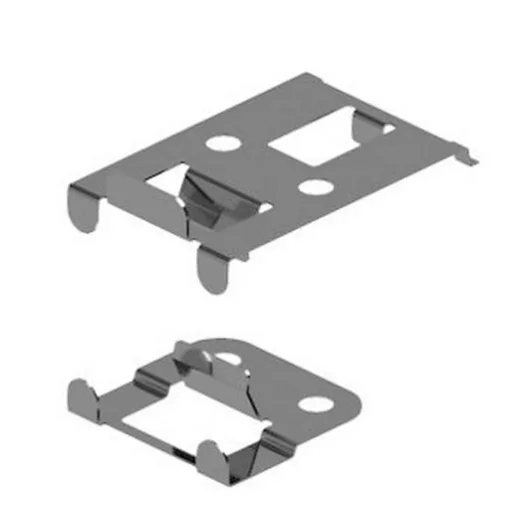

SideClip for Lunar Support
SideClips for Lunar allow for the easy and secure attachment of closure tiles to Lunar...
WallClip - Inox
Used against walls, the wall clip ensures a consistent distance between the last tile and...
WallClip - PP
Used against walls, the wall clip ensures a consistent distance between the last tile and...
