MegaMart S

Ø 150
header
Ø 200
misura-1-black 35 ÷ 1021 MM
misura-2-black 1000 Kg
MegaMart S

AN ESSENTIAL LINE OF SUPPORTS FOR HIGH-LEVEL PERFORMANCE. MEGAMART S SUPPORTS HAVE SPECIAL EXTENSIONS THAT CAN BE APPLIED WITH A CLICK.

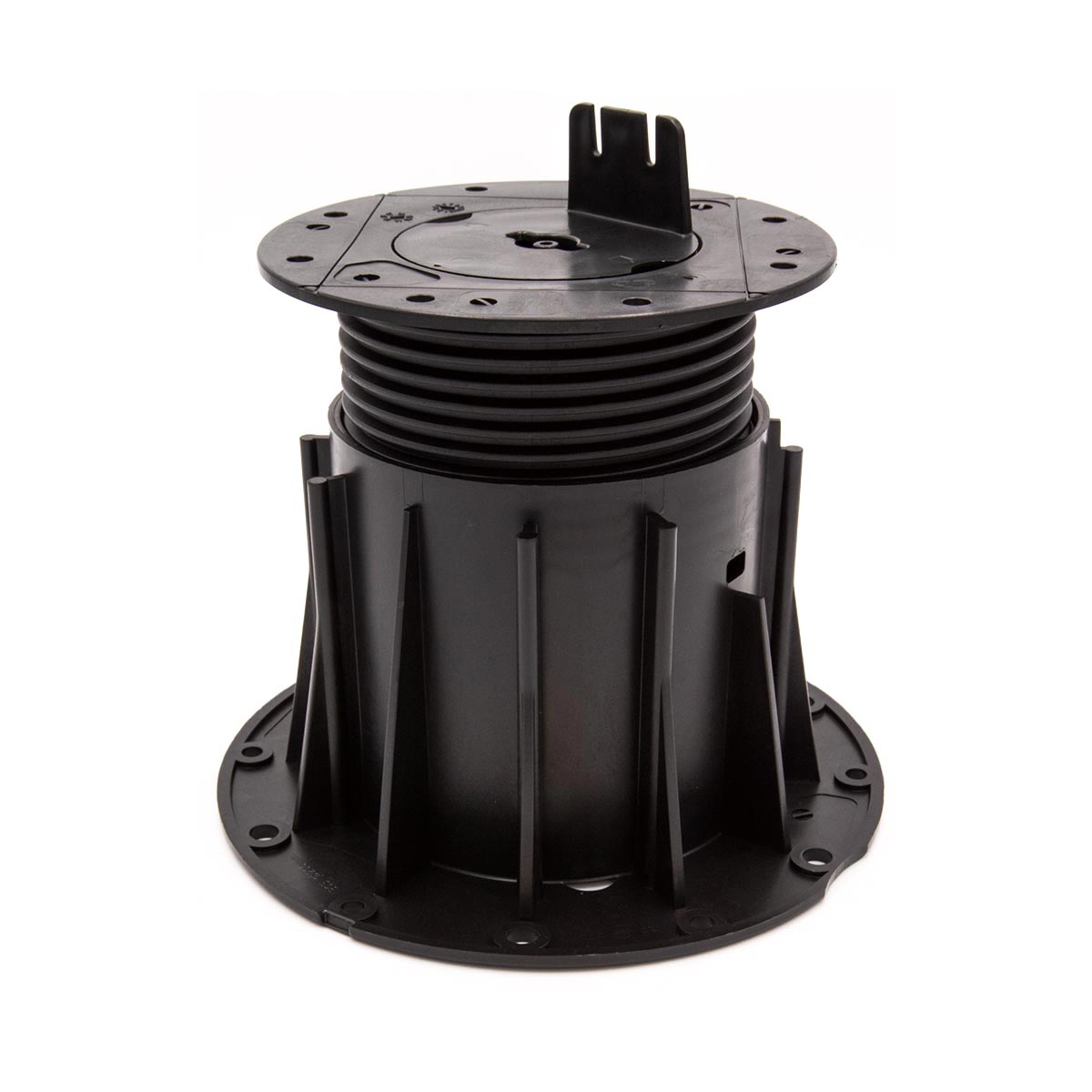

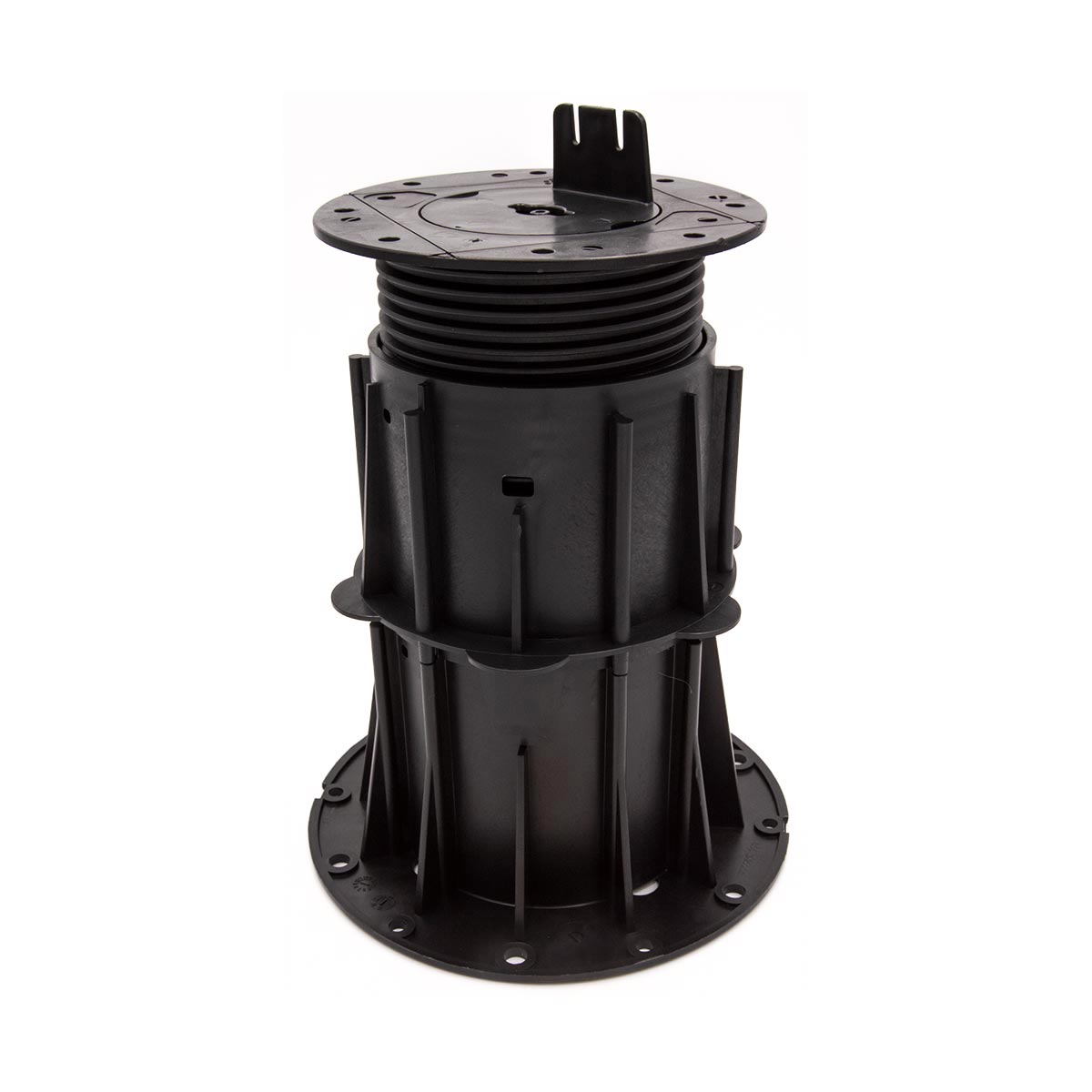

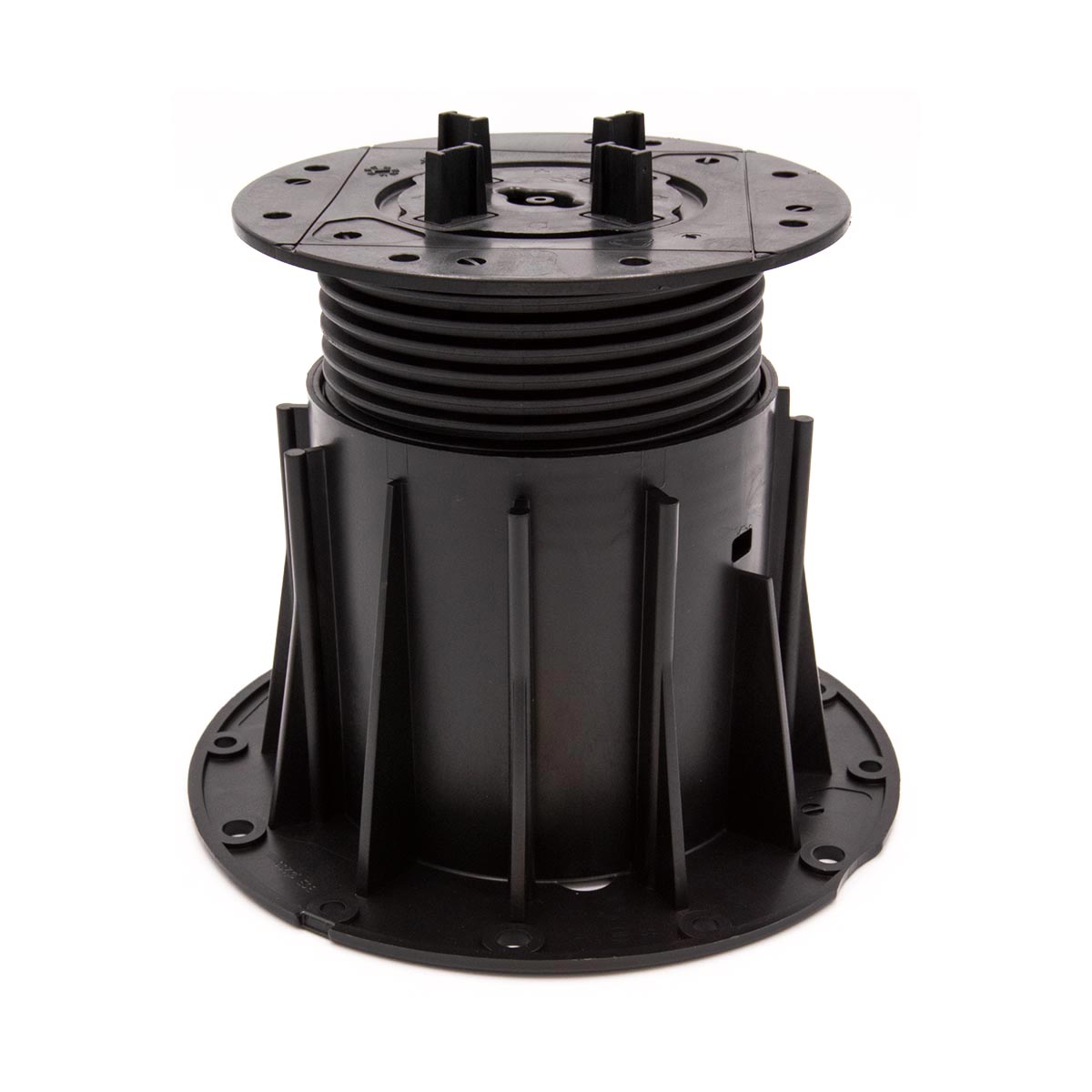

The quality of the robust MegaMart S supports is immediately noticeable. Each piece has a load capacity of 1000 kg, which, together with the quick and easy installation system of the extensions, makes it an essential product with maximum performances. MegaMart S has an excursion of 35 to 211 mm with the respective product codes MM001, MM002, MM003, MS001.

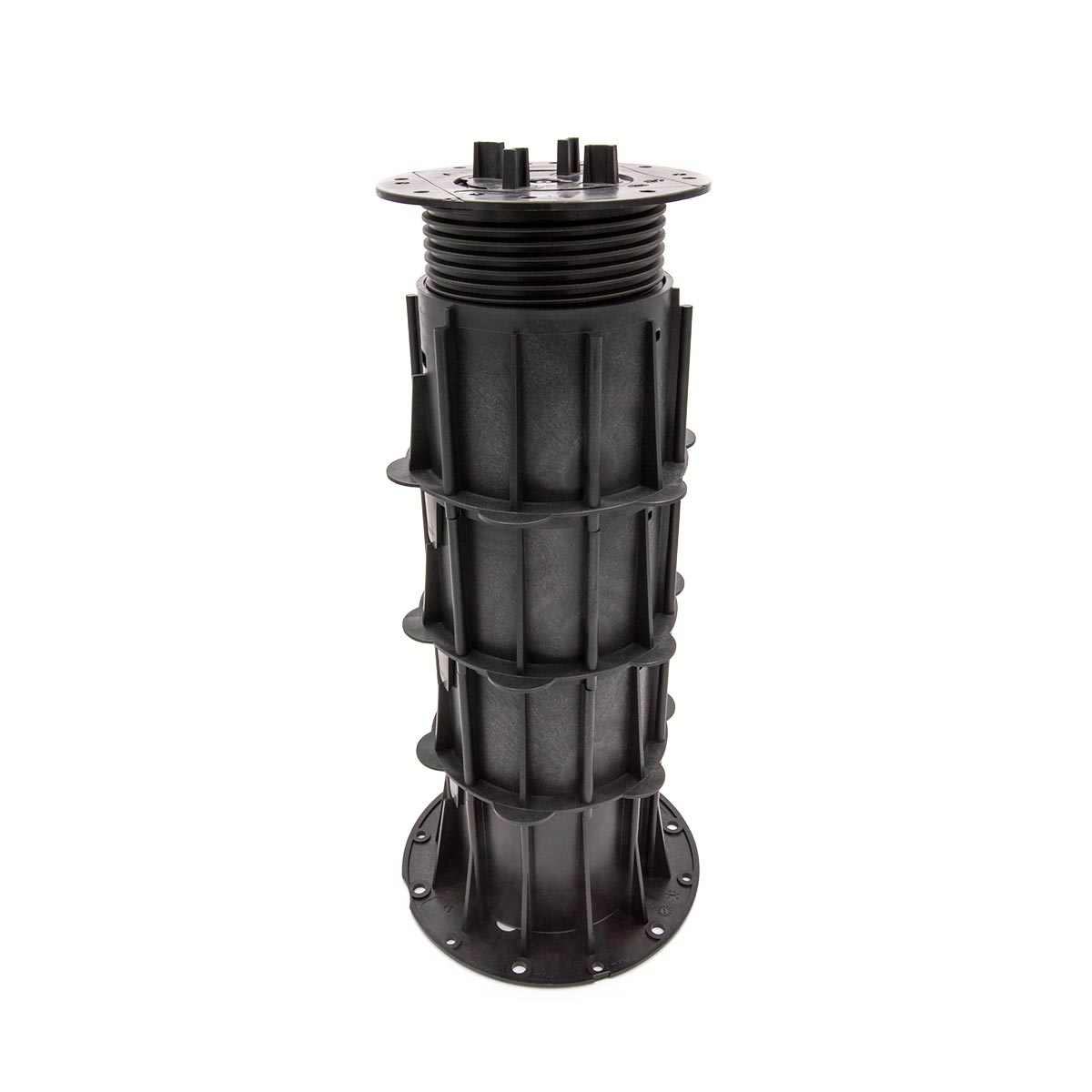

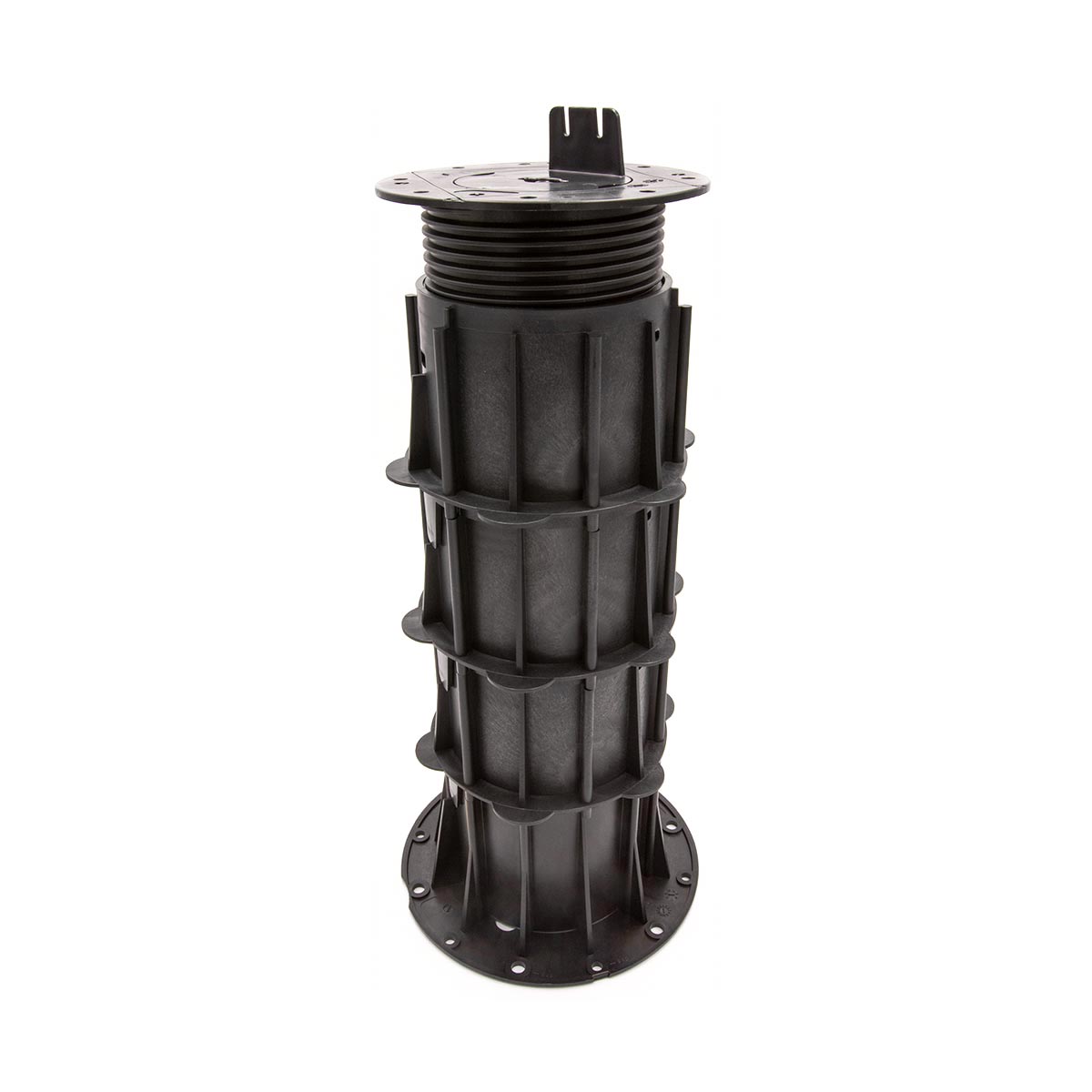

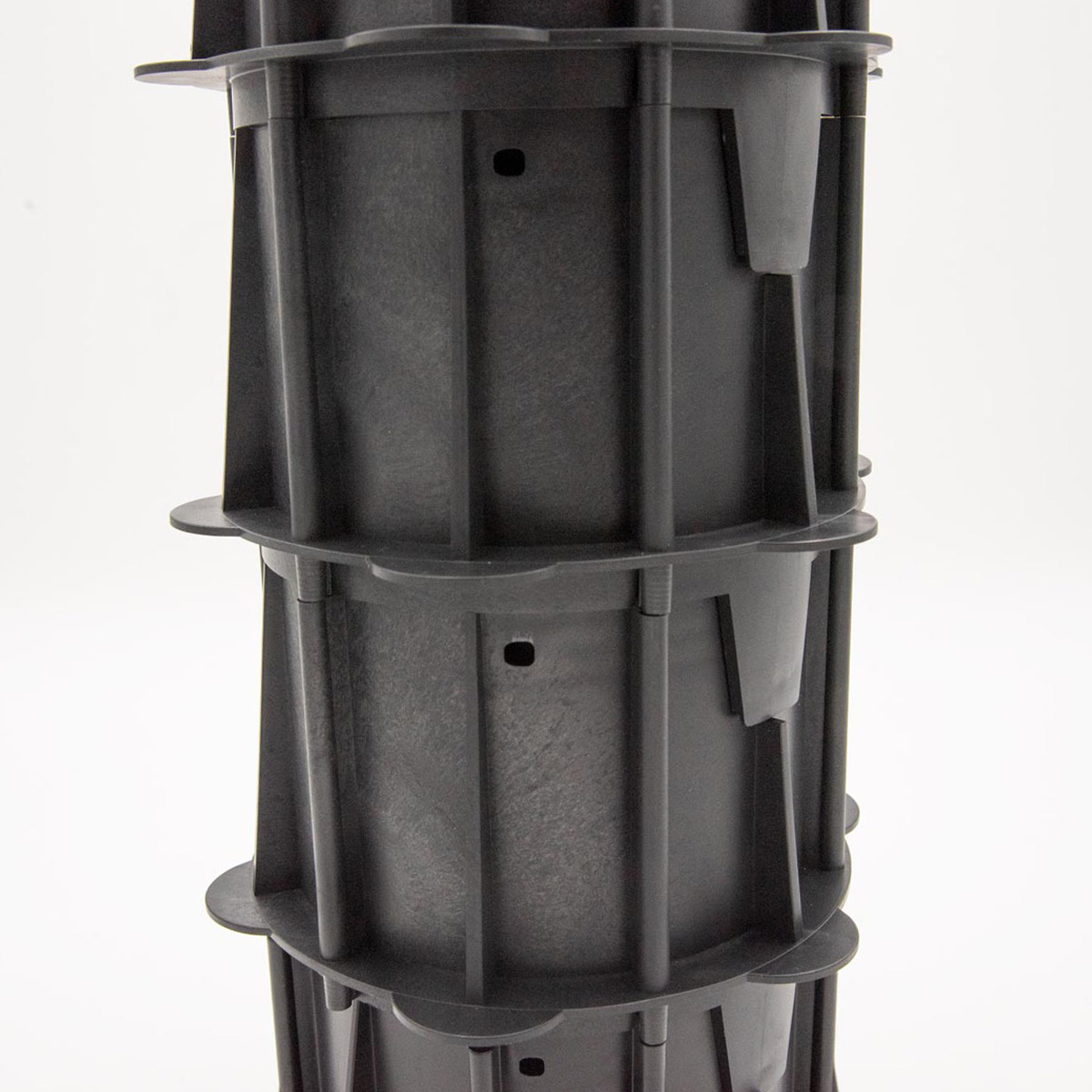

Up to nine 90 mm extensions can be overlap on the latter, reaching up to 1021 mm for the MS010 support.

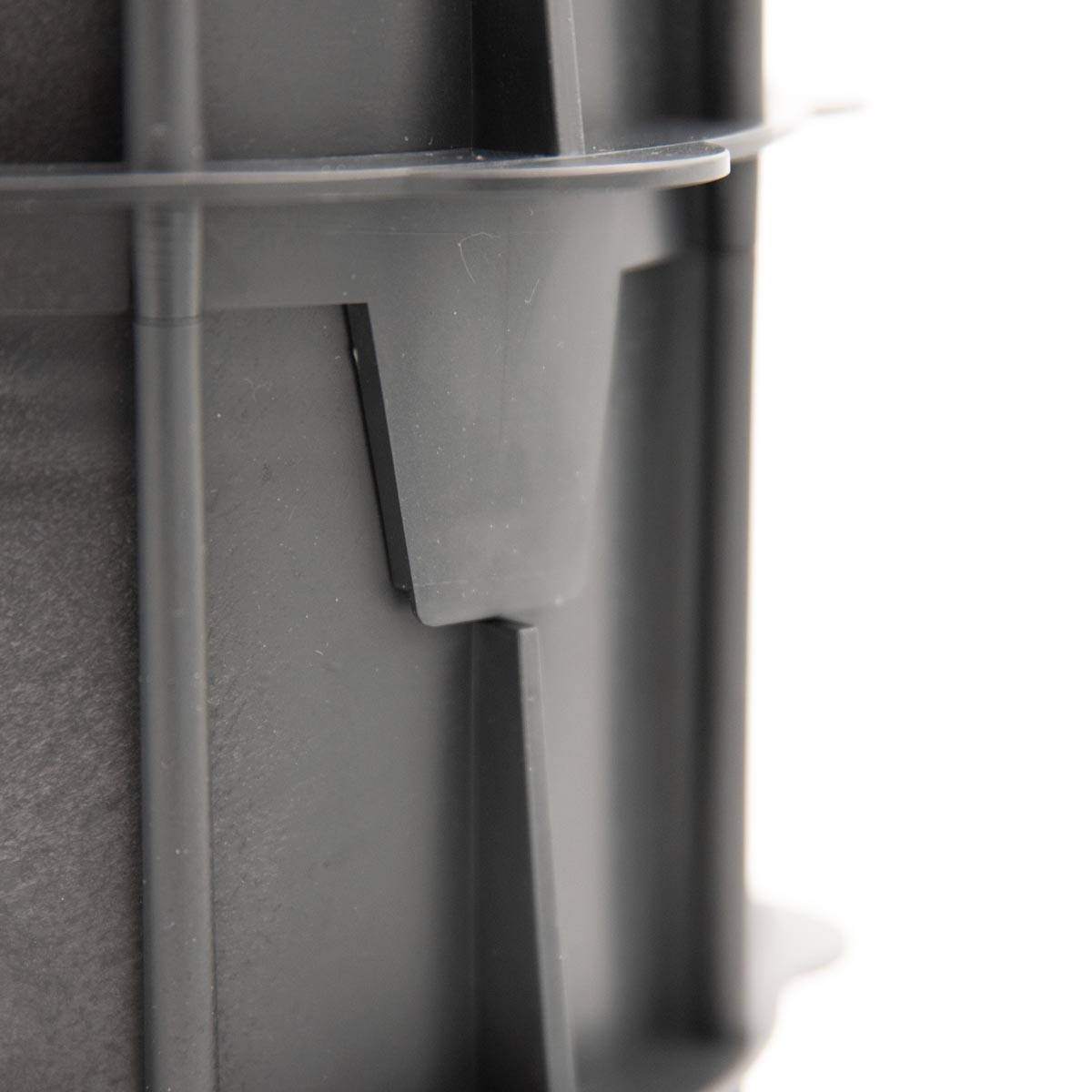

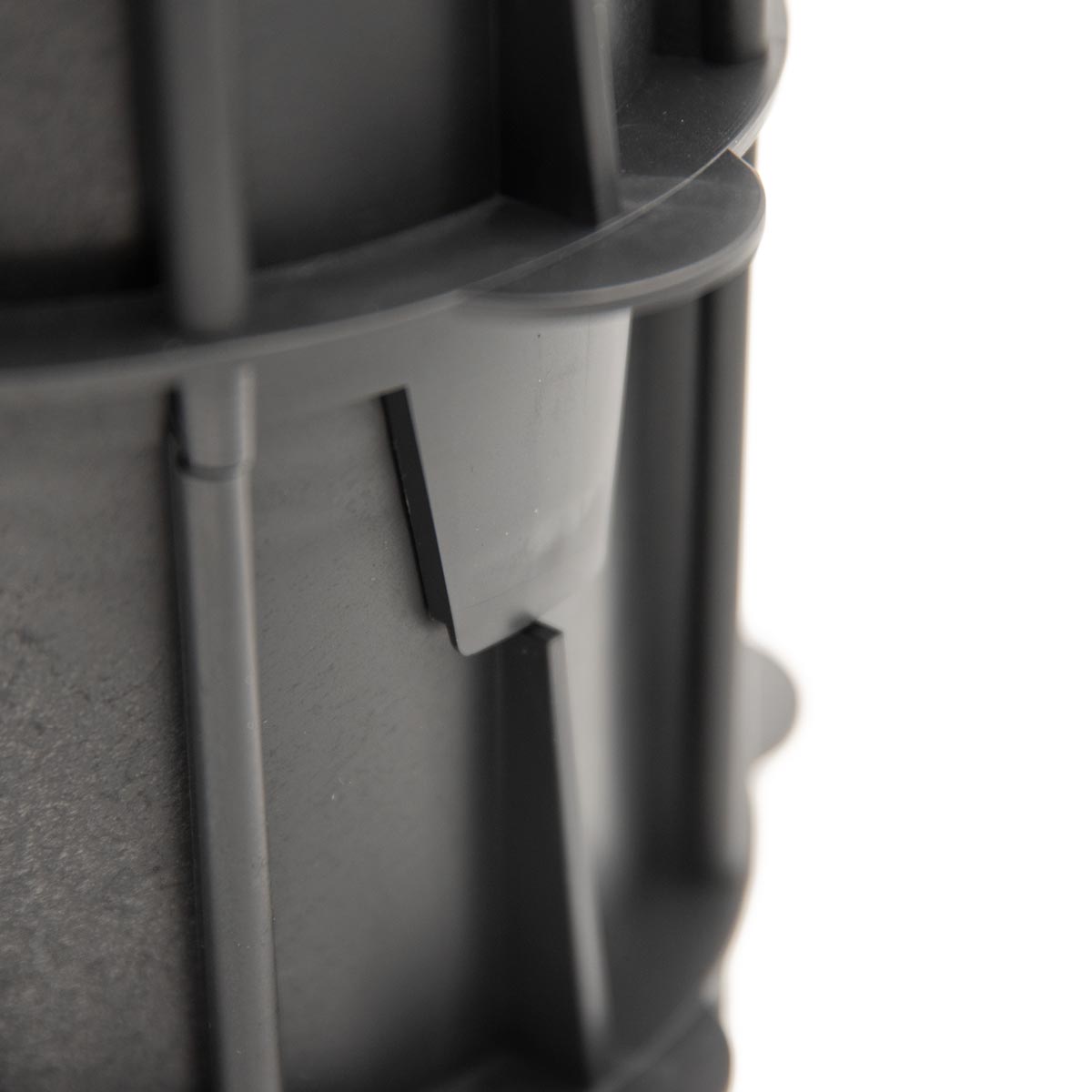

The main feature of MegaMart S extensions is their extreme ease of application: the extension is inserted in just one click, thereby speeding up installation. A wide range of headpieces is available for the MegaMart S for every situation, both for tile or decking. The height can also be adjusted with the help of multifunction adjustment EasyKey and the practical CP slope correctors can correct up to 10% of slope the laying surface.

mm_01
A
Mm201

35-50

mm_01
B
Mm202

50-75

mm_01
C
Mm203

75-120

mm_01
D
MS201

121-211

prolunghe
D+
extension
PMS09
1 extension
ms202

211-301

2 extensions
ms203

301-391

3 extensions
ms204

391-481

4 extensions
ms205

481-571

5 extensions
ms206

571-661

6 extensions
ms207

661-751

7 extensions
ms208

751-841

8 extensions
ms209

841-931

9 extensions
ms210

931-1021
